Real installs, real buildings. Clean raceway through hallways and stairwells, exterior runs that hold up to Northwest weather, and multi-floor conduit pulls. Tap any photo to see it full size.

Video

Install
walkthrough.

Walk through one of our completed installs and see the cable paths, raceway work and access point placement up close.

Project · 17 photos

Apartment complex — Wi-Fi & raceway install

Whole-property Wi-Fi for a three-story apartment complex: CAT6 runs to UniFi access points through interior hallways, exterior walkways and stairwells — concealed in surface raceway wherever it shows.

CAT6UniFi APsSurface racewayInterior + exterior runs

Raceways & AP — UniFi AP, CAT6 in raceways — Fig. 01Raceways & APUniFi AP, CAT6 in raceways

Hallway — Inside hallway, CAT6 → UniFi APs — Fig. 02HallwayInside hallway, CAT6 → UniFi APs

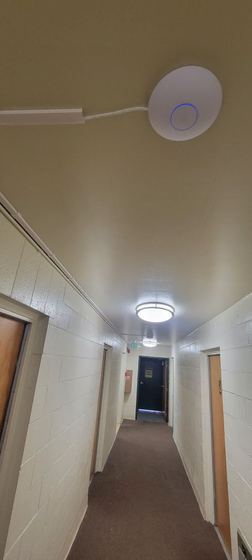

Raceways — Interior hallway CAT6 → UniFi APs — Fig. 03RacewaysInterior hallway CAT6 → UniFi APs

Raceways — Exterior hallway, outer ledge run — Fig. 04RacewaysExterior hallway, outer ledge run

Exterior — Exterior hallway runs of CAT6 → UniFi APs — Fig. 05ExteriorExterior hallway runs of CAT6 → UniFi APs

Exterior — Exterior parking lot run down to first floor APs — Fig. 06ExteriorExterior parking lot run down to first floor APs

Raceways — Staircase wraparound run — Fig. 07RacewaysStaircase wraparound run

Raceways — Staircase run, cont'd — Fig. 08RacewaysStaircase run, cont'd

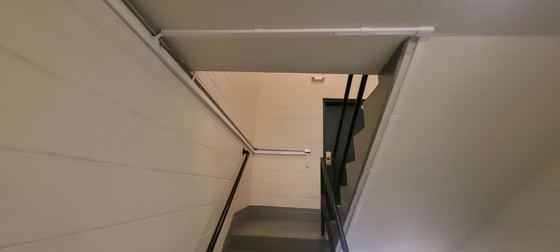

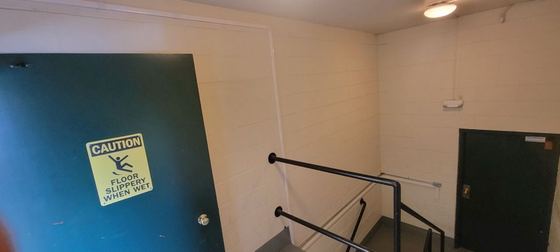

Stairwell — Indoor wraparound staircase CAT6 run — Fig. 10StairwellIndoor wraparound staircase CAT6 run

Equipment — PoE switch and patch cabling at the head end — Fig. 14EquipmentPoE switch and patch cabling at the head end

Exterior — Corner run down the exterior wall — Fig. 15ExteriorCorner run down the exterior wall

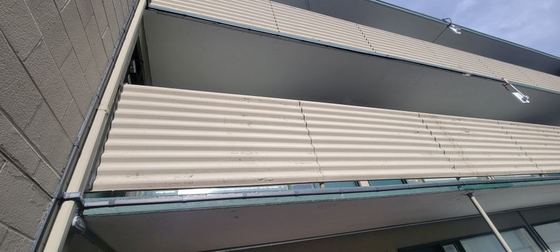

Exterior — Run along the underside of the walkways — Fig. 16ExteriorRun along the underside of the walkways

Exterior — Raceway along the exterior eave line — Fig. 17ExteriorRaceway along the exterior eave line

Project · 5 photos

Four-story conduit pull — CAT6a

A vertical backbone pull for a four-story building: sixteen CAT6a cables through conduit stepping down from 2.5" to 1", feeding four access points per floor and weatherproof switch housings.

16 × CAT6a4 floors2.5" → 1" conduit4 APs / floor

Conduit CAT6a Pull — 16 CAT6a cables, 4 floors, 2.5 — Fig. 18Conduit CAT6a Pull16 CAT6a cables, 4 floors, 2.5" → 1" conduit

Conduit CAT6a Pull — 4 APs per floor — Fig. 19Conduit CAT6a Pull4 APs per floor

Weatherproof secure housing — Switches for each floor — Fig. 20Weatherproof secure housingSwitches for each floor

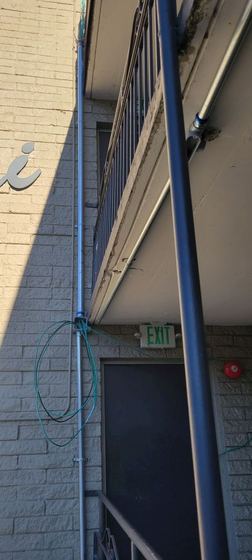

Conduit CAT6a Pull — Riser run down the building face — Fig. 21Conduit CAT6a PullRiser run down the building face

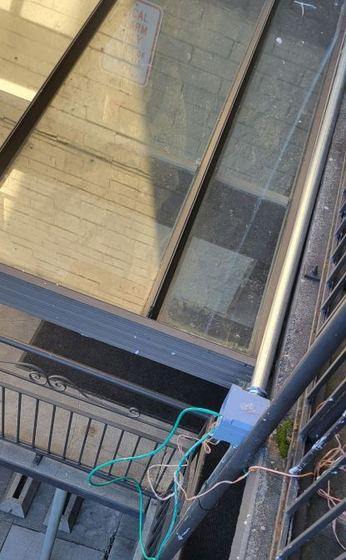

Conduit CAT6a Pull — Conduit routed along the walkway — Fig. 22Conduit CAT6a PullConduit routed along the walkway

Want this at your property?

Send us your floorplan and photos of the hallways and walls — we'll send back a free rough estimate.
